48v 100ah 200ah handizkako etxeko potentzia hibrido horman biltegiratze kargagarria eguzki litio lifepo4 bateria paketea

2023-08-18 06:01

zehaztapena

Eredu zenbakia	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Tentsioa	48/51.2V	48/51.2V	48/51.2V
aforoa	100Ah	150Ah	200Ah
Energia	5.12kwh	7.68kwh	10.24kwh

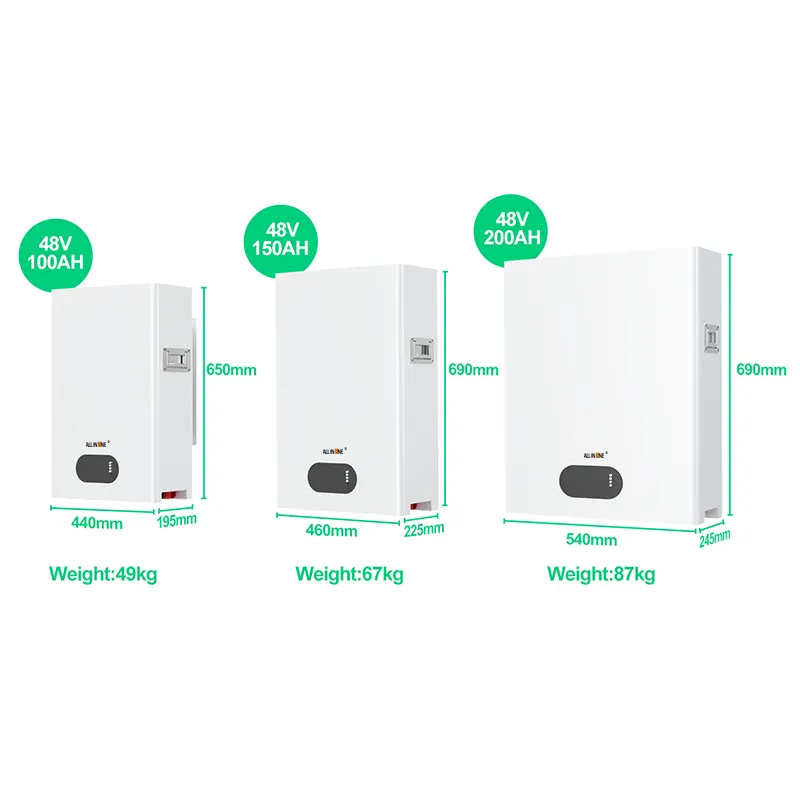

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
pisu	49kg	67kg	87kg
Oinarrizko Parametroak
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Eragiketa Tenperatura	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Biltegiratze Tenperatura	0 °C eta 45 °C artean @60+/-25% Hezetasun Erlatiboa	0 °C eta 45 °C artean @60+/-25% Hezetasun Erlatiboa	0 °C eta 45 °C artean @60+/-25% Hezetasun Erlatiboa
Litiozko bateria estandarra	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Gehienezko potentzia	5120W	7680W	10240W

Gure Fabrika

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

ohiko galderak

G: Negoziazio enpresa edo fabrikatzailea zara?
A: We are ALL IN ONE original factory.

G: Laginak izan ditzaket probatzeko? Eta zer da denbora laginaren ordena lortzeko?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

G: Saldu osteko zerbitzua eskaintzen al duzu?
E: Bai, bermea 12 hilabetekoa da. Aldi honetan gure aldetik kalitateko arazorik izanez gero, berria bidali dezakegu ordezko gisa.

Q: OEM / ODM onartzen duzu?
A: Bai, eskuragarri dago.

G: Bateriaren benetako ahalmena al zara?
A: Bateria-gelaxka guztiak A Kalifikazioarekin,% 100 berria eta benetako ahalmena.

G: Zer ziurtagiri dituzu?
A: CE, ROHS, FCC, IEC62133, MSDS, UN38.3 eman diezazkiokegu zure eskaera kantitatea handia bada.

P: MOQ al duzu?
A: Ez da mugatua. Ordena txikia ere ongi etorria. Kantitate gehiagok prezio hobea du, zuretzako prezio onena egiaztatuko dugu.

Q: Zein da zure ordainketa epea?
A: T / T, Paypal, Alibaba ordaintzeko modua eta abar onartzen ditugu.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
