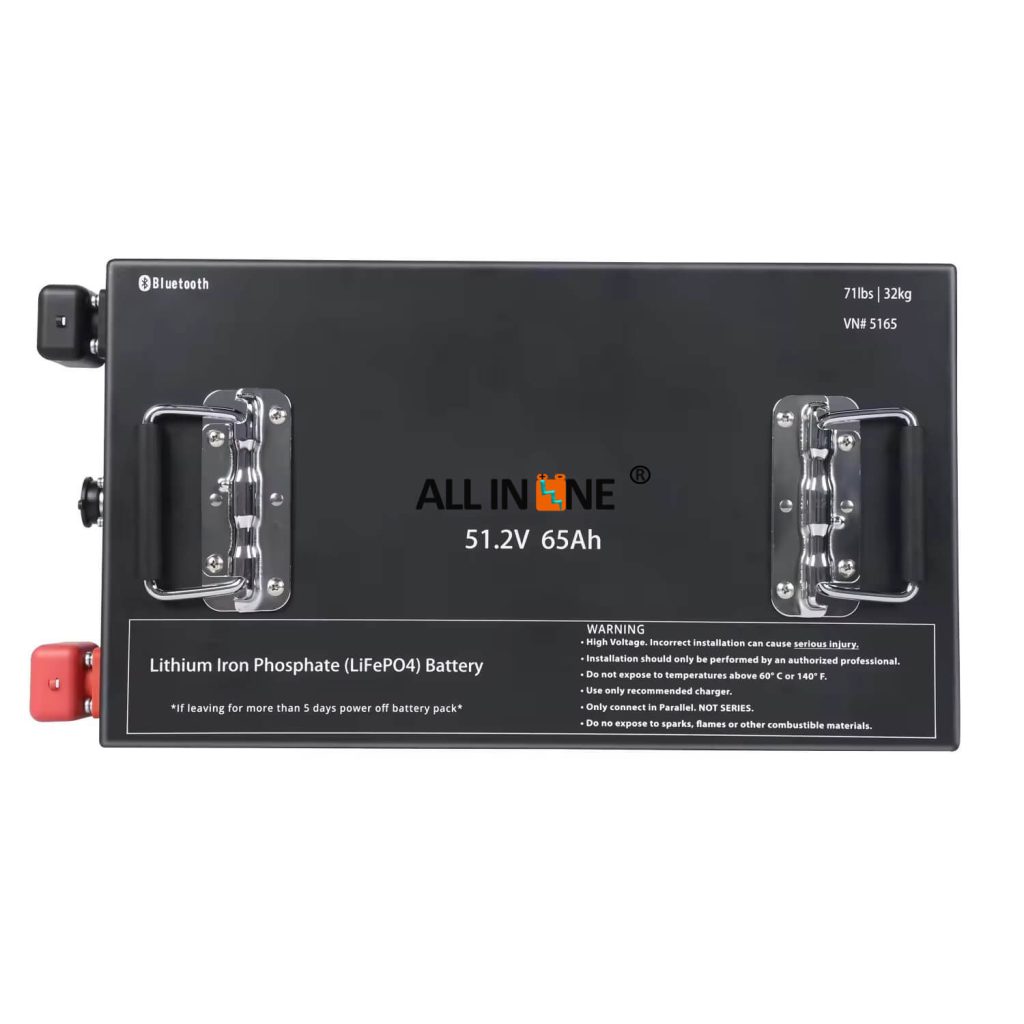

51.2v 65Ah golf gurdi lifepo4 litio ioi bateria ziklo sakona IP67

2024-06-28 03:25

zehaztapena

Model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Tentsio nominala	51.2V	51.2V	51.2V	51.2V	76.8V
Gaitasun nominala	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58,4V	58,4V	58,4V	58,4V	87,6V
Gehieneko karga-korrontea	100A	100A	60A	150A	100A
Gehienezko Deskarga Etengabeko Korrontea	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Deskarga ebakitzeko tentsioa	43,2V	43,2V	43,2V	43,2V	43,2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Kargaren tenperatura	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Deskarga tenperatura	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	>6000	>6000	>6000	>6000	>6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Babes maila	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
pisu	48.3kg	49kg	32kg	71kg	72.8kg
Communication Protocol	CAN / RS485	RS485	RS485	CAN / RS485	CAN / RS485



Funtsezko ezaugarriak

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

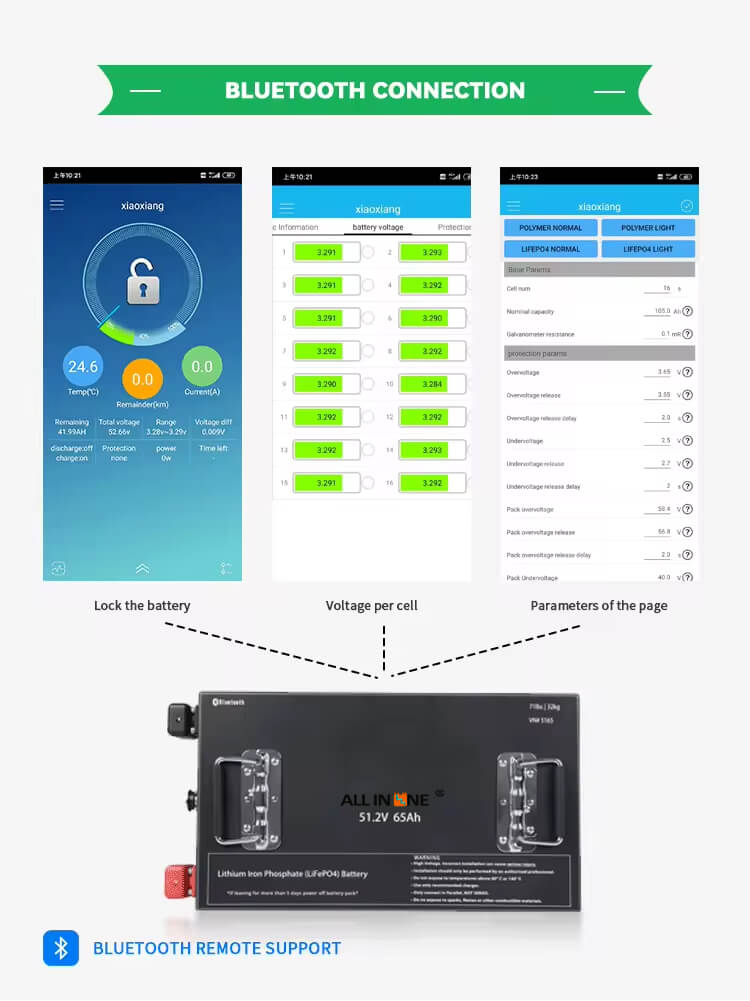

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Agintzen dugu
1. Produktu guztiak izango dira % 100 probatu bidali aurretik produktuak kalitate arazorik ez duela ziurtatzeko.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Aplikazio

Gure Fabrika

Ontziratzea eta bidalketa

ohiko galderak

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

2.G .: salmenta osteko zerbitzua eskaintzen al duzu?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 Zein da zure enpresaren abantaila?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

4.G .: OEM / ODM onartzen duzu?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Orokorrean, 25-30 egun inguru artikulu desberdinen arabera, ordainketa aurreratu eta laginen inguruko berrespena izan ondoren

Q6:Are your battery real capacity?
A6: gure bateria-gelaxka guztiak A gradukoak dira,% 100eko gaitasun berriak eta errealak.

7.G .: Fabrika edo merkataritza enpresa al zara?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

8.G .: Zer nolako ziurtagiriak dituzu?
A8: CE, ROHS, FCC, IEC62133, MSDS, UN38.3 eman ditzakegu zure eskaera kantitatea handia bada.
