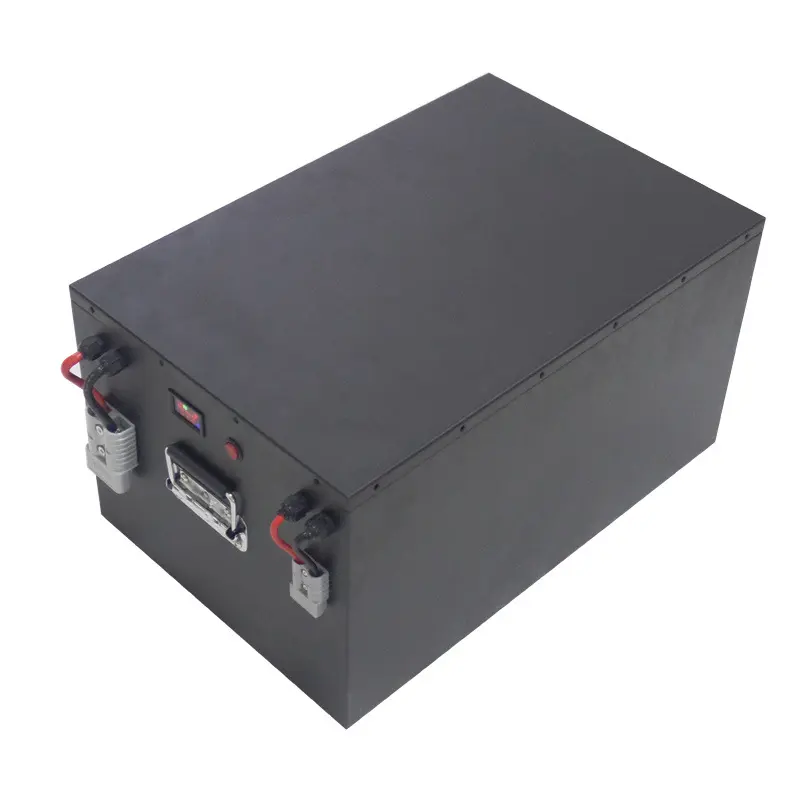

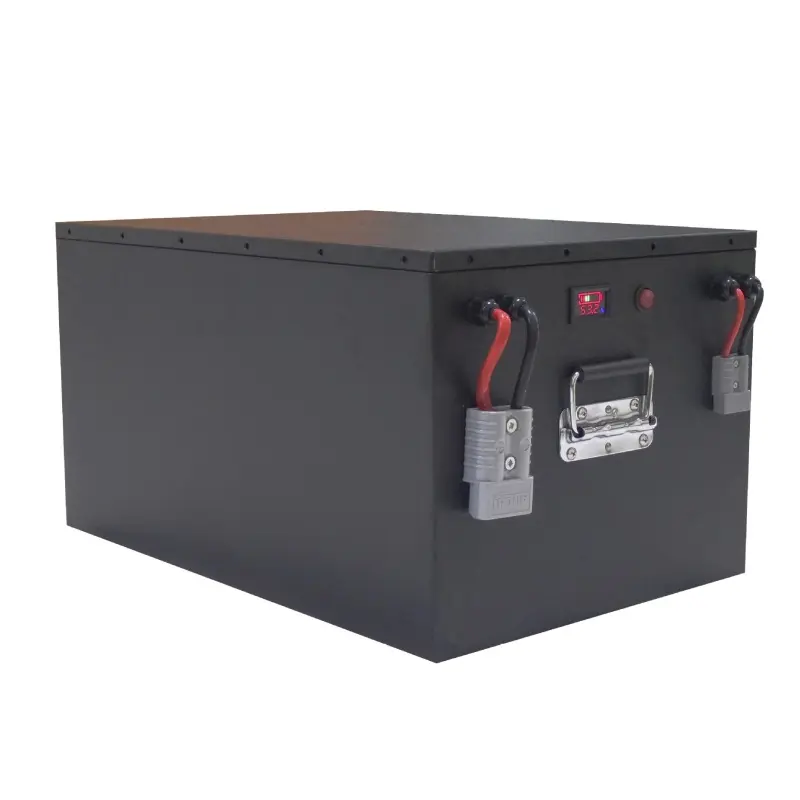

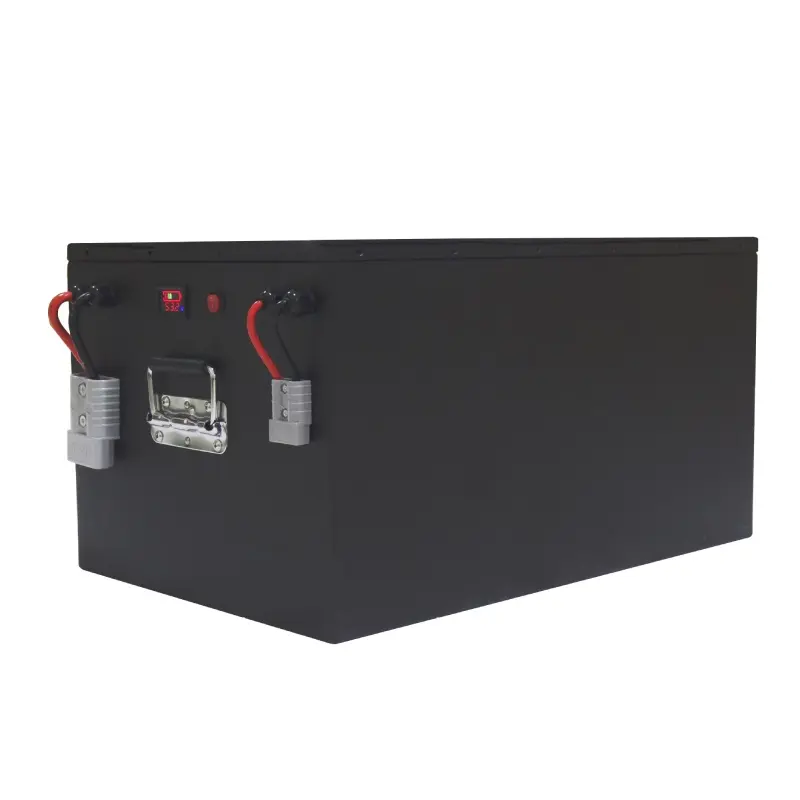

Lifepo4 Litio Burdin Fosfato Bateria 72V 50Ah Ebike Motozikleta RV Golf Orgarako

2023-06-01 02:15

zehaztapena

Tentsio nominala	72V
Gaitasun nominala	50Ah
Barne erresistentzia	≤220mΩ
Bizitza Zikloa	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6V
End of charge Current	100ma
Max.Continuous charge current	50A
Karga metodoa	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2V
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332*170*220mm
pisu	≤20Kg
Bateria Babesteko Sistema Automatikoan eraikia	Bai

Charge plugs and Discharge connectors optional

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

Ezaugarriak

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4. Deskarga gehiegizko erresistentzia eta karga atxikipena

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 Aplikazio

eskaerak

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



Gure Fabrika

ohiko galderak

1,G: Zein da AINn produktu nagusia?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, Q: Zer da gainkarga?
A: Kargatu ondoren, baterien hasierako egoera eta ahalmena probatu. Kargatu 10.0V-ra 3C korrontean, gero 0.01C-ra kargatu CV moduan.
Behatu bateriaren itxuraren aldaketak.
3, Q: Zer da alta?
A: Kargatu ondoren, probatu baterien hasierako egoera. Pilak normalak direnean, deskargatu 0V-ra 0,5C-tan. Behatu aldaketak
bateriaren itxura.
4. G: Ba al dezaket lagin eskaera bat?
A: Bai, laginaren agindua onartzen dugu kalitatea probatzeko eta egiaztatzeko. Bateriak behar den moduan egin daitezke.
5. G: MOQ muga al duzu?
E: Bai, MOQ muga dugu produkzio masiboan, baina bateriaren ereduaren araberakoa da. Jarri gurekin harremanetan xehetasunak lortzeko.
6. G: Zer moduz denbora beruna?
A: Laginak 5-7 lanegun behar dira. Masa ekoizteko borondatea 25-30 egun irauten du. Kantitatearen araberakoa da.
7. G: Zer moduz bidalketa eta entrega denbora?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. G: Zer esan saldu osteko zerbitzuarekin?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
